Cudy GS1016 2.0 – 16-Port Gigabit Unmanaged Switch with VLAN and Extend Modes
50.00 JD
Equip your desktop with fast wired connectivity using the PE10 2.0 PCI-E Ethernet Adapter featuring Gigabit support, WoL, and advanced flow control.
Key Features
- Gigabit Ethernet: Supports 10/100/1000 Mbps speeds with auto-negotiation
- Wake on LAN: Enables remote boot and system wake-up functions
- Standard & Low Profile: Includes both bracket sizes for compatibility
- PCI-E Interface: Requires 1x or higher slot on motherboard
- OS Support: Works with Windows XP to 11, Windows Server 2003–2022, and Linux
- IEEE Protocols: 802.3, 802.3u, 802.3ab, 802.3az, 802.3x flow control
1 in stock

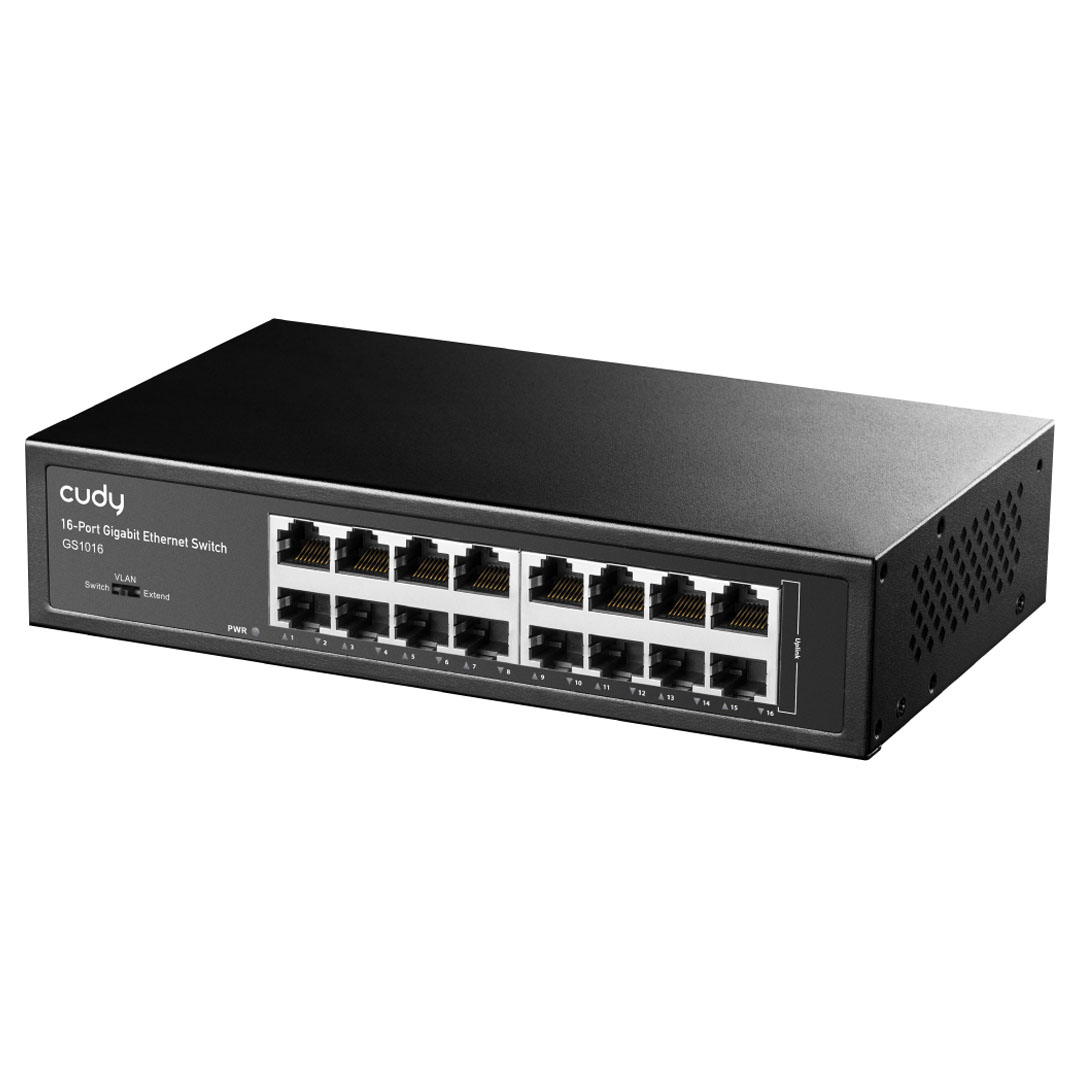

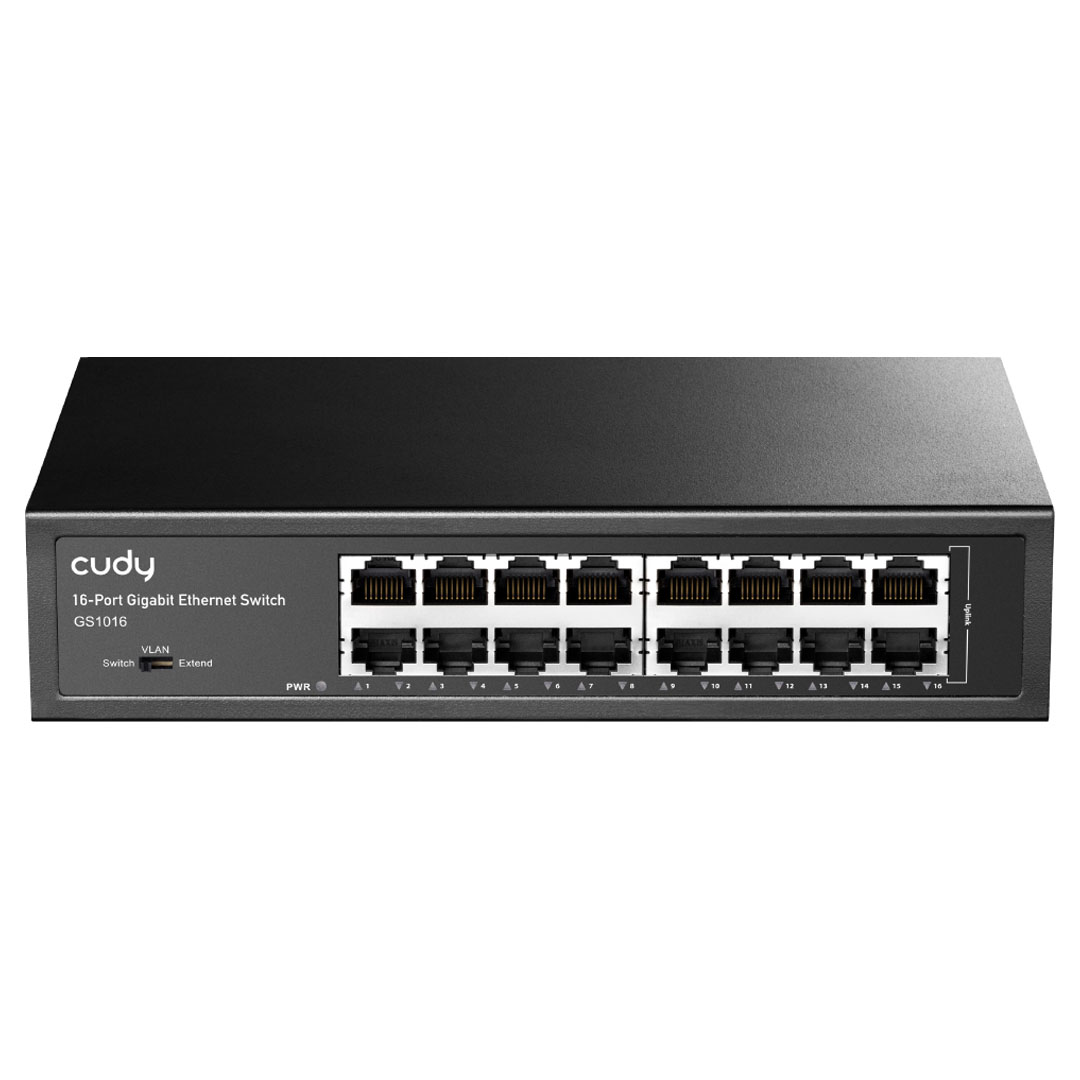

Cudy GS1016 2.0 16-Port Gigabit Unmanaged Switch
The Cudy GS1016 2.0 is a powerful 16-port Gigabit Ethernet switch designed for stable and efficient network expansion in offices, homes, and small businesses. It supports VLAN and Extend modes via DIP switches, enabling port isolation or extending transmission distances up to 250 meters. Featuring a fanless metal casing for silent operation, it can be installed on a desktop or rackmounted. Compliant with IEEE 802.3 standards, it delivers strong performance with a 32Gbps switching capacity and 23.8Mpps forwarding rate—perfect for reliable wired connectivity in Amman and Jordan.
Key Features
- 16 Gigabit Ethernet Ports: Full-speed 10/100/1000 Mbps connectivity
- VLAN and Extend Modes: Activate via DIP switch for port isolation or 250m distance support
- Fanless Metal Housing: Silent operation with enhanced durability
- Desktop or Rackmount: Flexible mounting for any network setup
- LED Indicators: Power and activity status per port
- Energy Efficient: IEEE 802.3az power-saving support
Specifications
- Model: GS1016 2.0
- Ports: 16 x Gigabit RJ45
- Special Ports: Ports #1~#14 support Extend and VLAN modes
- Switching Capacity: 32 Gbps
- Forwarding Rate: 23.808 Mpps
- MAC Address Table: 8192 entries

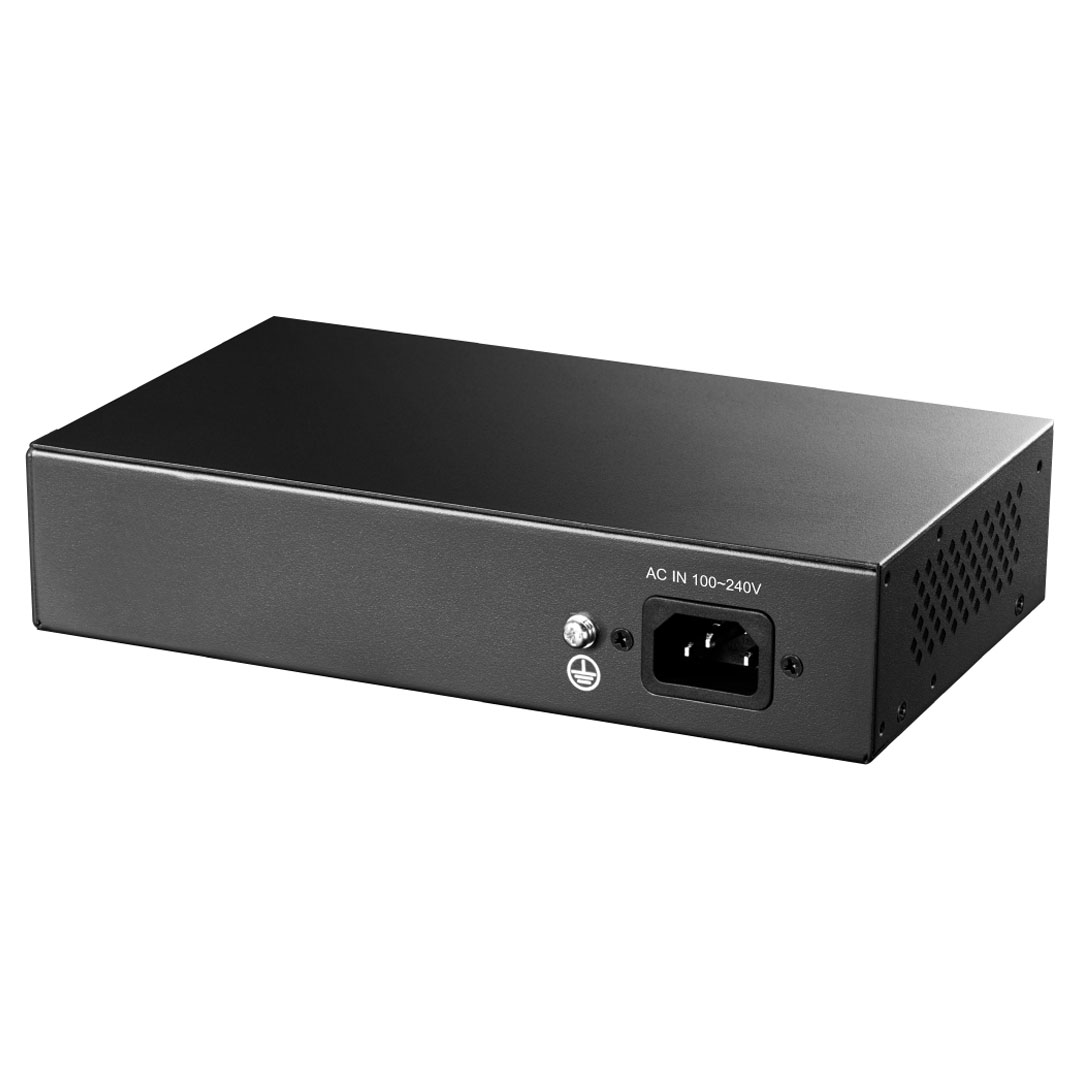

- Power Input: AC 90–260V~, 50/60Hz
- Max Power Consumption: 15W
- LEDs: Power, Speed/Link/ACT
- Protocols Supported: 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
- L2 Features: IGMP Snooping, Loop Prevention
- Temperature Range: Operating: 0°C ~ 40°C, Storage: -40°C ~ 70°C
- Humidity: 10–90% operating, 5–90% storage (non-condensing)
- Dimensions: 200 × 118 × 44 mm
- Weight: 617 g
- Casing: Metal
- Certifications: FCC, CE
More About This Item
- Ideal for structured wired networking in offices and homes across Jordan
- Supports stable gigabit transmission with no fan noise
- Extend Mode enables longer cable runs for larger rooms or floorplans

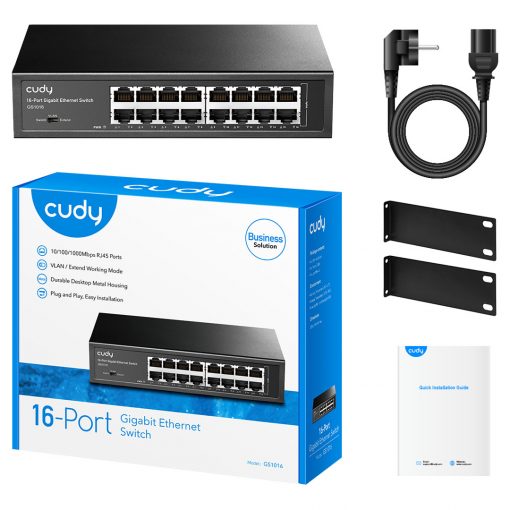

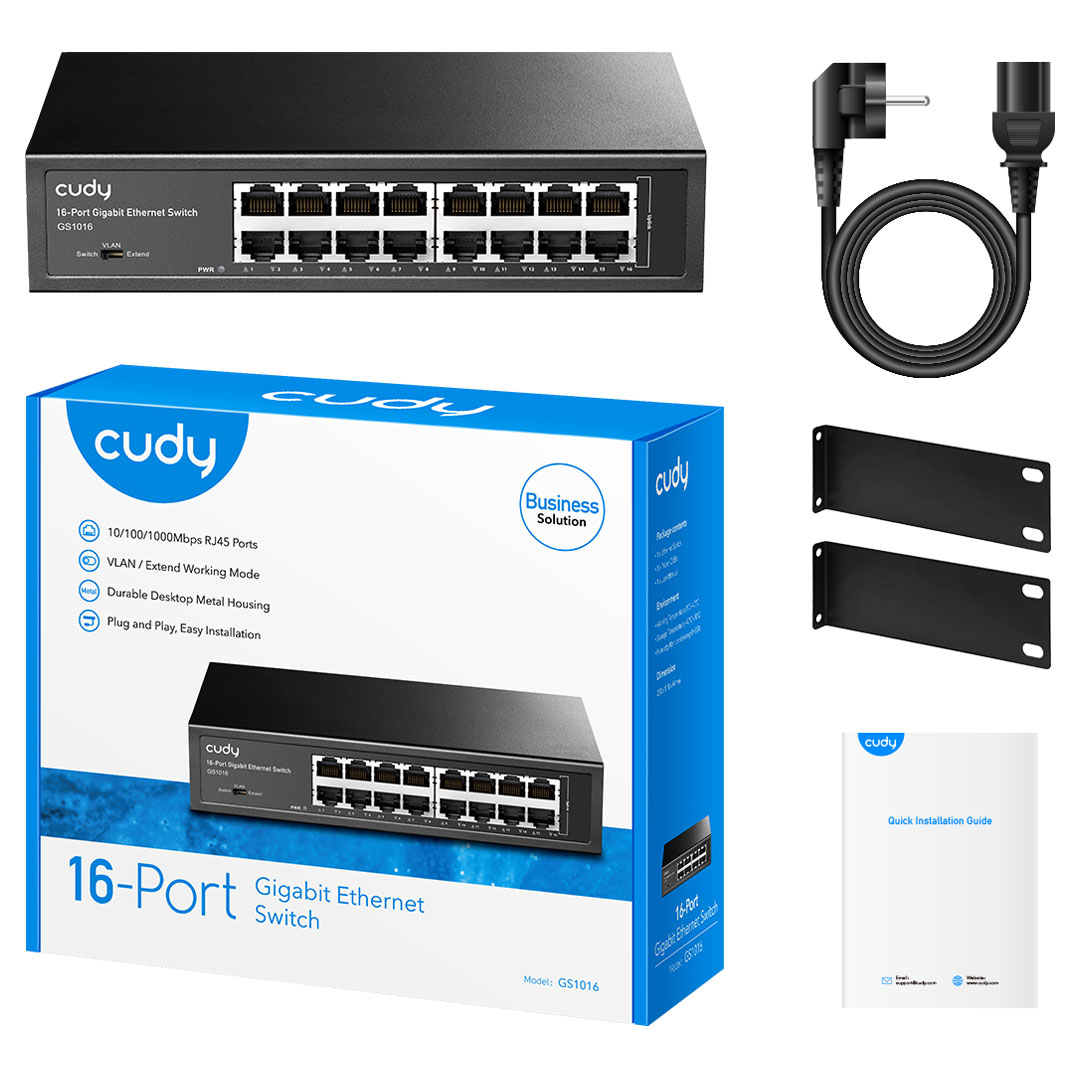

What’s in the Box?
- Cudy GS1016 2.0 Switch
- Power Cord
- Installation Guide
- Mounting Kit (Rack Brackets)
