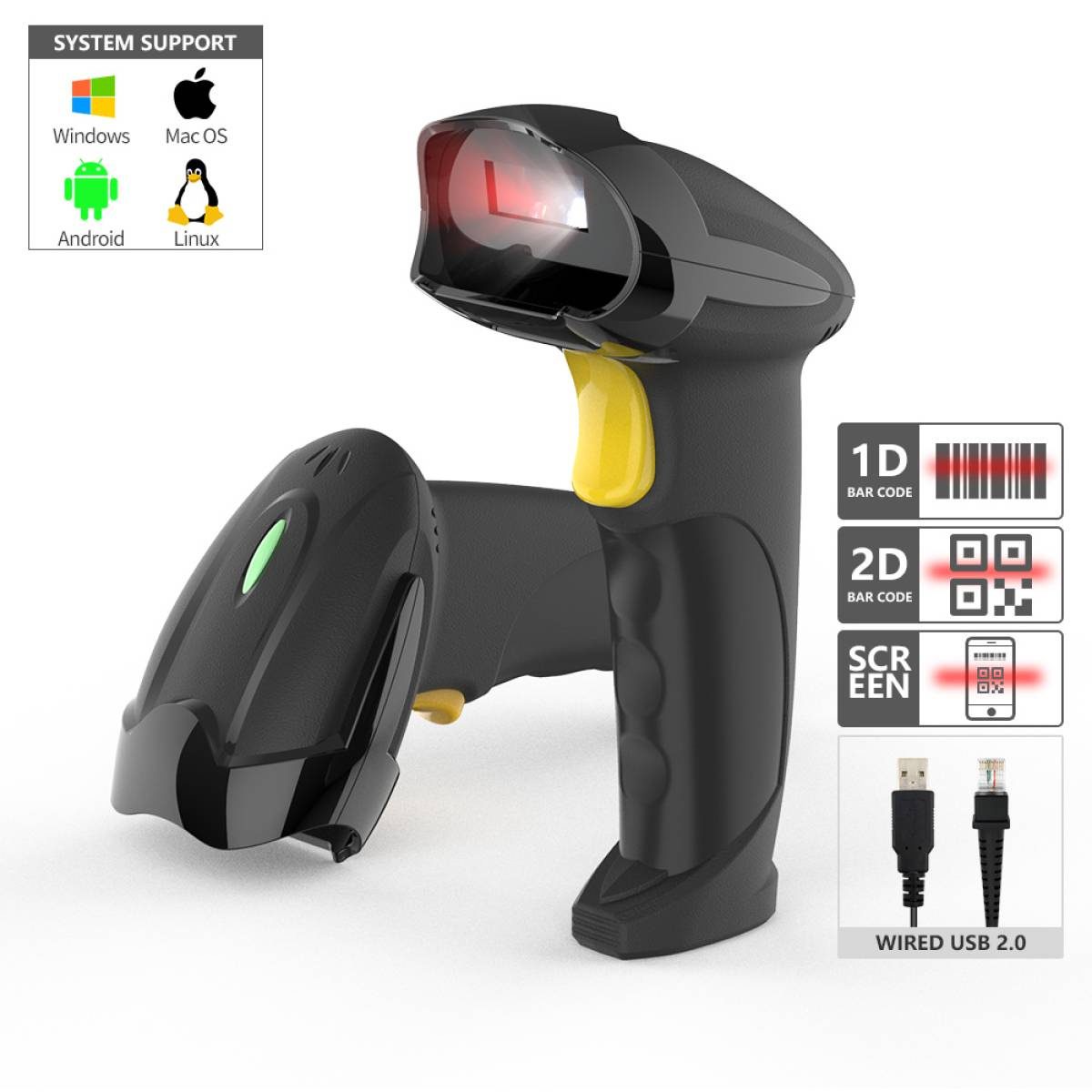

GTCODESTAR X-760H – Wired 2D Barcode Scanner CMOS Sensor USB COM Interface QR 1D 2D Code Support

GTCODESTAR X-760H – Wired 2D Barcode Scanner, CMOS Sensor, USB COM Interface, QR & 1D/2D Code Support

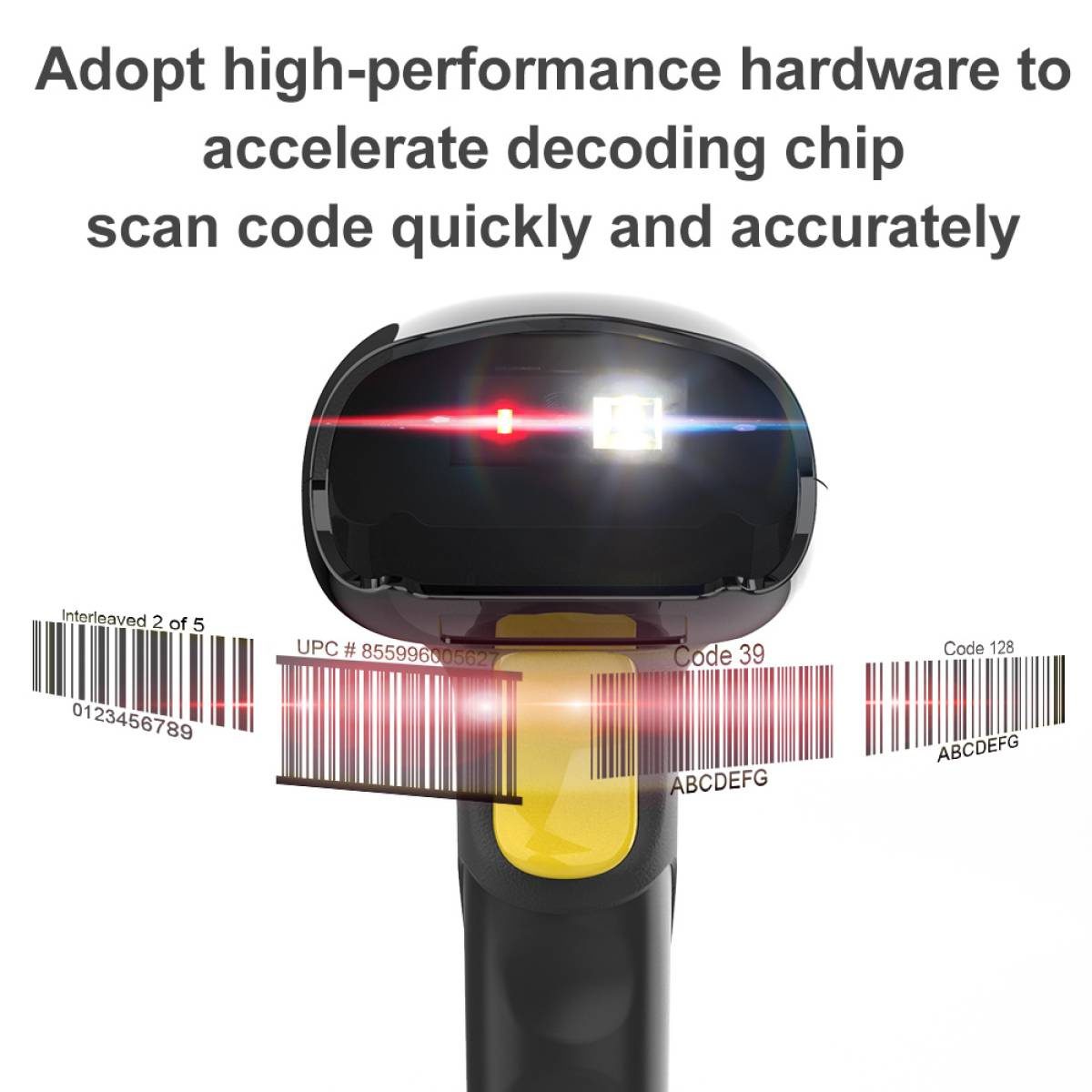

The GTCODESTAR X-760H is a high-performance wired barcode scanner ideal for supermarkets, retail checkout, and payment systems. Featuring a flat CMOS sensor with 640×480 resolution, it efficiently decodes 1D and 2D codes including QR, Data Matrix, PDF417, Micro QR, and HanXin. Its image-based scanning with red LED aiming and white LED illumination ensures accurate reading under diverse lighting conditions.

Designed for fast scanning speeds with motion tolerance of 20–25 cm/sec, this durable scanner is built from ABS+PC+TPE materials, weighing only 108g. It offers IP52 protection, 1.5m drop resistance, and ESD protection up to 15KV. Compatible with Windows, Linux, Android, and macOS via USB and COM interfaces. It supports multiple languages and virtual keyboard input for versatile use.

Key Features

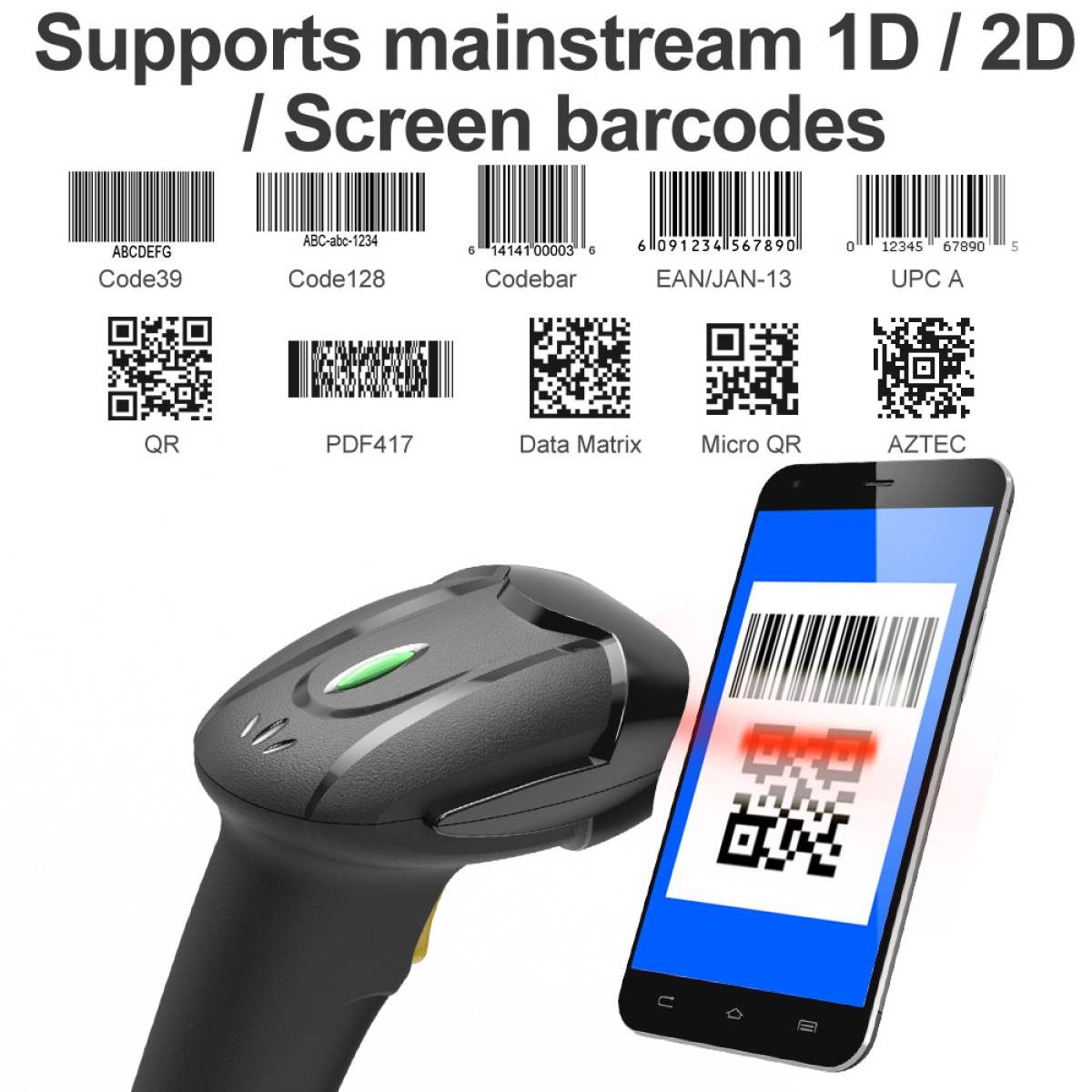

• 2D Barcode Reading: Decodes QR, Data Matrix, PDF417, Micro QR, and HanXin codes.
• 1D Barcode Support: Reads Code128, Code39, UPC, EAN, Codabar, MSI, and others.
• CMOS Sensor: High-resolution 640×480 sensor for image-based scanning.
• Fast Motion Tolerance: Supports scanning speeds of 20–25 cm/sec.

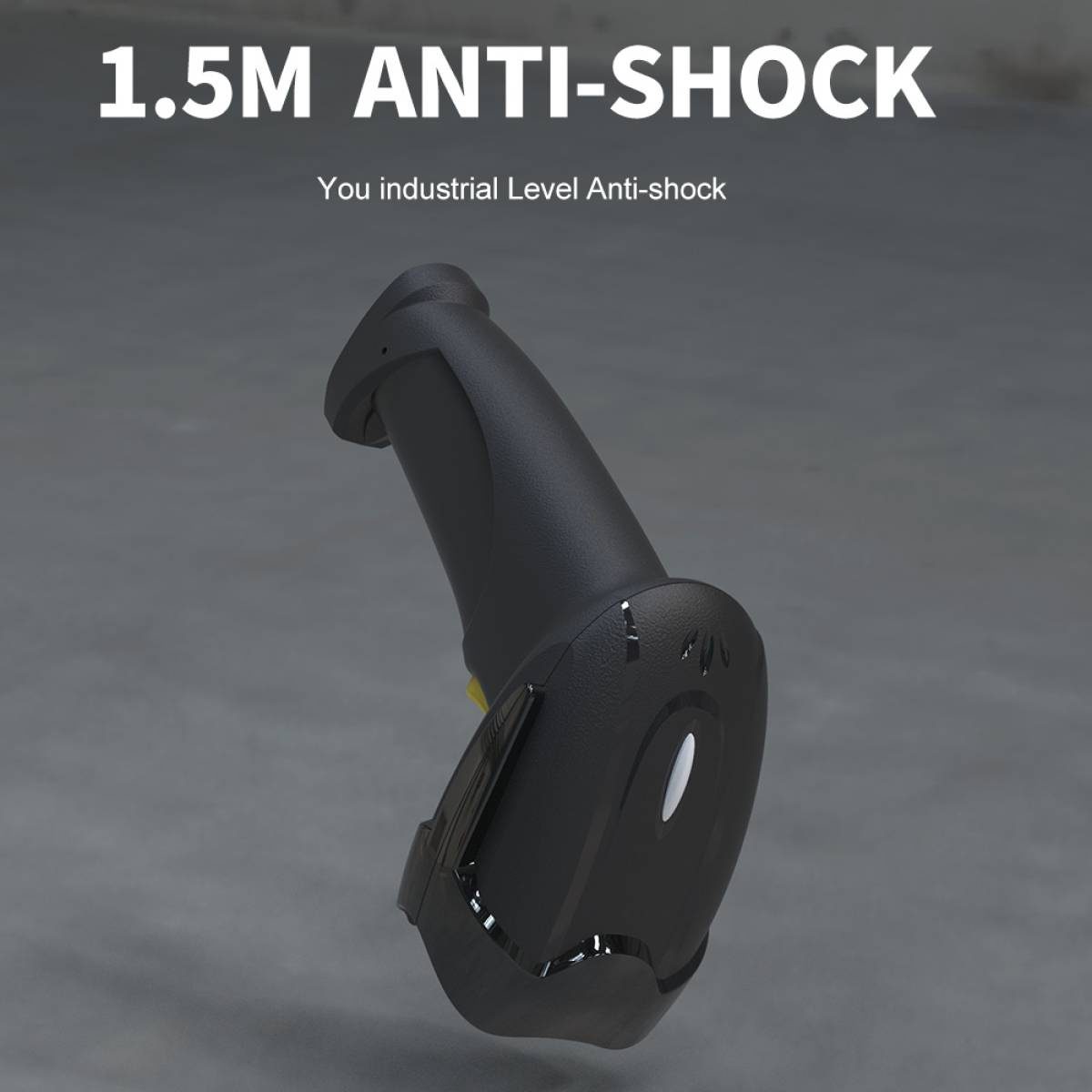

• Durable Build: ABS+PC+TPE housing with IP52 protection and 1.5m drop resistance.

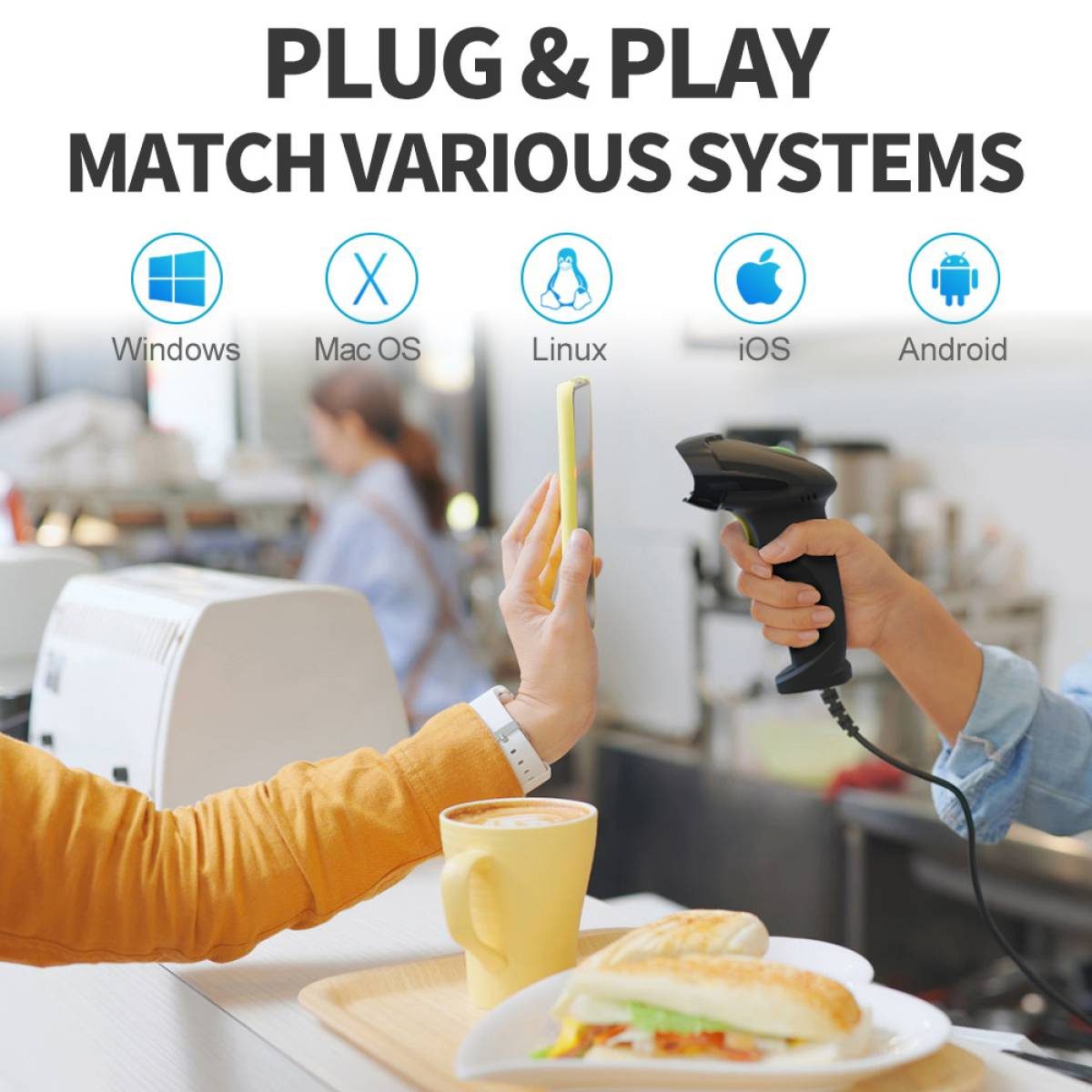

• Wide Compatibility: Supports Windows, Linux, Android, and macOS operating systems.
• Multilingual Input: Allows multiple languages via virtual keyboard input.
• Compact Design: Lightweight at 108g with ergonomic grip.

Specifications

• Model: X-760H
• Type: Wired 2D Barcode Scanner
• Sensor: CMOS, 640×480 resolution

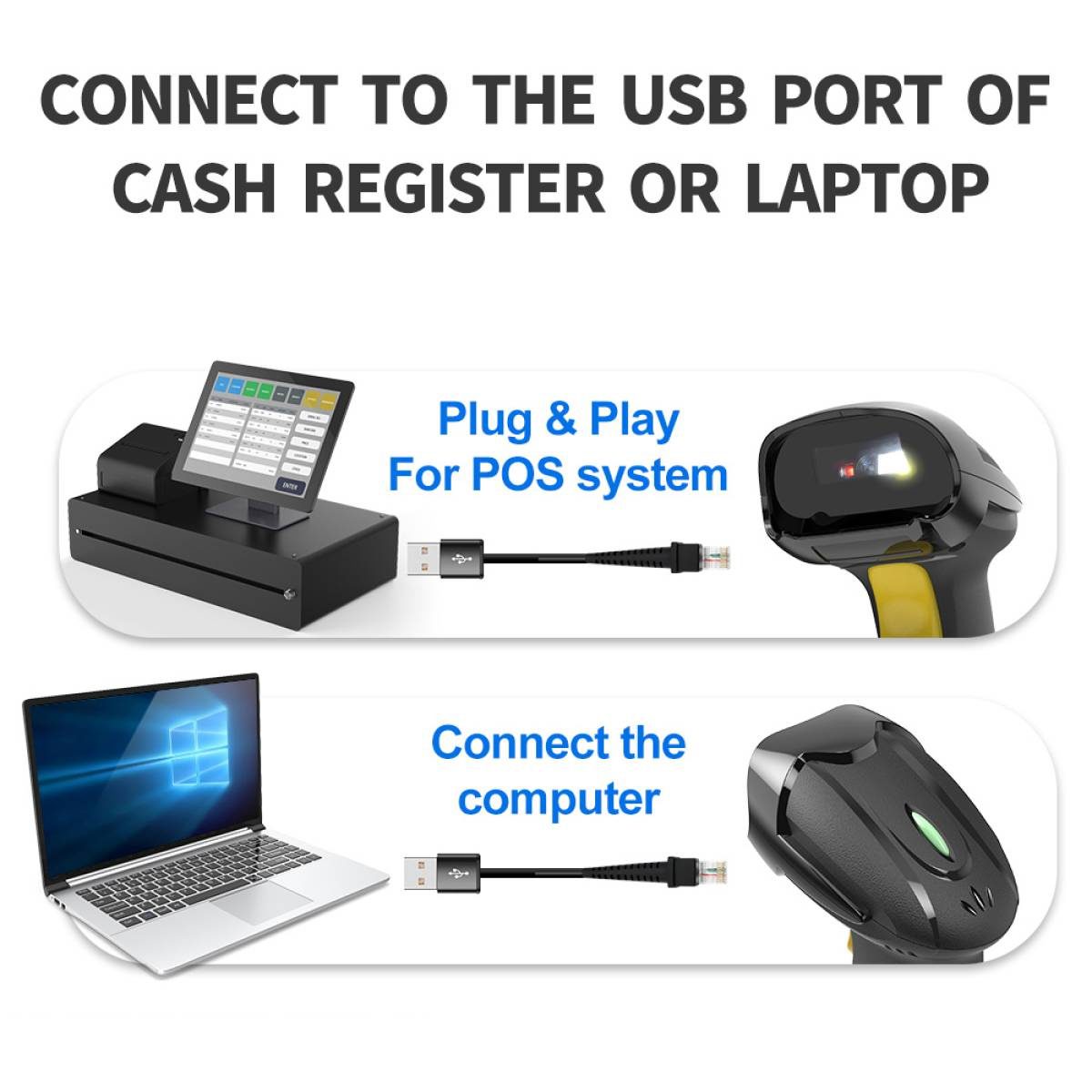

• Interface: USB, COM (RS232 optional)
• Supported OS: Windows XP/7/8/10, Linux, Android, macOS
• Languages: American, Czech, French, German, Hungarian, Italian, Japanese, Spanish, Turkish (F/Q)
• Light Source: Red LED aiming + White LED illumination
• Resolution: ≥4mil
• Motion Tolerance: Code128: 20 cm/sec; QR: 25 cm/sec
• Reading Distance: 10–600 mm
• Prompt Modes: Buzzer + LED indicator
• Scanning Angles: Roll 360°, Pitch 45°, Yaw 45°
• Decoding Capability: 1D & 2D barcodes including QR, Data Matrix, PDF417, Micro QR, HanXin
• Dimensions: 180.1 × 88.7 × 66.3 mm
• Weight: 108g ±5g
• Material: ABS+PC+TPE
• Button Lifespan: Over 100,000 presses
• Power Supply: DC 5V ±5%
• Power Consumption: 0.85W working, 0.55W standby, 1.05W max
• Current: 168mA working, 109mA standby, 200mA max
• Operating Temperature: 0–50°C
• Storage Temperature: 0–50°C
• Humidity: 20–85% (non-condensing)
• Protection: IP52 rating, 1.5m drop resistance, 15KV ESD protection
• Certifications: EMC EN55032/55035, FCC Part 15 Class B, RoHS

More About This Item

• Ideal for retail environments with fast 1D/2D barcode and QR code scanning.
• Reliable performance in various lighting thanks to integrated red and white LED illumination.
• Robust construction able to withstand drops and electrostatic discharge for long-lasting use.
• Supports multiple operating systems and multiple languages for flexible integration.

What’s in the Box?

• GTCODESTAR X-760H Wired 2D Barcode Scanner
• USB and COM Interface Cables
• User Manual and Warranty Documentation
